CAD files in a Lua game

LÖVE — aka Love2D — and its 3D and VR sibling LÖVR both run on LuaJIT, whose FFI calls a C library directly. The SDK's LuaJIT wrapper is plain Lua over the same two libraries every other wrapper uses: nothing to compile, no plugin to build. Open a STEP, IFC, Rhino, IGES, ACIS, OCCT .brep or OpenSCAD file, walk its tree and draw its meshes and edges; or build exact solids in Lua with the blacksmith kernel and write them to STEP.

Four steps, no compiler

1. An engine. LÖVE 11.5 or LÖVR 0.19, the 64-bit build for Windows, macOS or Linux. Any LuaJIT with its FFI will do, so a plain luajit runs the same code outside an engine.

2. The SDK and its libraries. The SDK repository holds the wrapper in luajit/; fetch.py downloads the two libraries for your machine into lib/:

   git clone https://github.com/rdeioris/cadaclysm-sdk
   cd cadaclysm-sdk
   python fetch.py

3. Into your game. Copy the wrapper's files beside main.lua, and the libraries from lib/ beside them (.dll on Windows, lib….so on Linux, lib….dylib on macOS). The kernel's two files and library are needed only if you build solids.

   mygame/
     main.lua  conf.lua
     cadaclysm.lua  cadaclysm_cdef.lua                       -- reading files
     cadaclysm_blacksmith.lua  cadaclysm_blacksmith_cdef.lua -- the kernel
     cadaclysm_love.lua                                      -- or cadaclysm_lovr.lua
     cadaclysm_capi.dll  cadaclysm_blacksmith.dll

4. Require it. local cadaclysm = require("cadaclysm"). The library is found beside the Lua files, beside a fused game's executable, or where CADACLYSM_LIBRARY (CADACLYSM_BLACKSMITH_LIBRARY for the kernel) points; cadaclysm.load(path) names it outright — for a library your game unpacks to its save directory, say.

The examples below are in the SDK's luajit/examples/: from luajit/, love examples/love-part part.step or lovr examples/lovr-part part.step. The tests run headless in either engine: lovec test, lovr test.

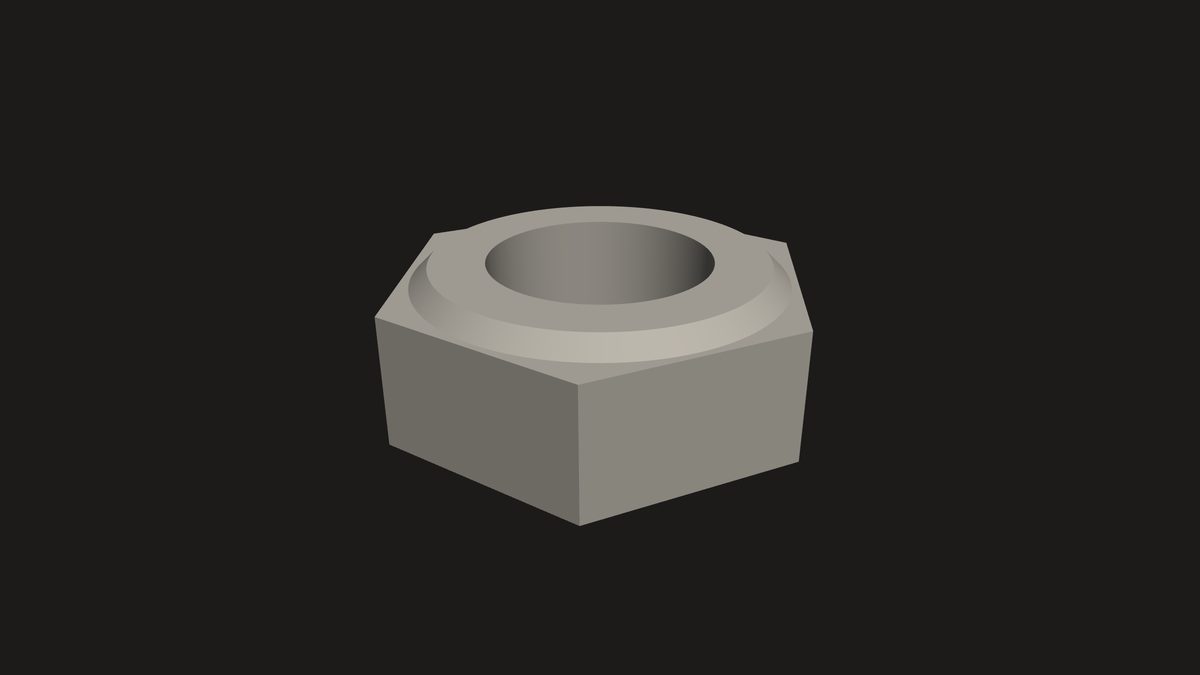

A part on its stand

Open a file, take each placement — every drawing of every body, so a part used twice is drawn twice — and hand its triangles to LÖVE once. The file's own colours come with it. Drop another file on the window to open it.

-- A CAD part turning on its stand, in LÖVE: `love love-part part.step`,
-- or drop a STEP, IGES, SAT, 3DM, BREP or IFC file on the window.
-- The wrapper sits two folders up here; in your own game, keep its files beside
-- main.lua and leave this line out.
package.path = love.filesystem.getSource() .. "/../../?.lua;" .. package.path
local cadaclysm = require("cadaclysm")
local CL = require("cadaclysm_love")

local parts, view, angle = {}, nil, 0.6

local function open(path)
  local scene = cadaclysm.open(path, nil, "y-up")   -- metres, Y up
  parts = {}
  for _, placement in ipairs(scene.placements) do  -- every drawing of every body
    local body = placement.geometry
    parts[#parts + 1] = {
      mesh = CL.mesh(body.mesh),                    -- the triangles, copied once
      place = placement.raw_transform,              -- where this copy sits
      colour = body.colour or { 0.72, 0.70, 0.66 }, -- the file's own paint
    }
  end
  view = CL.frame(scene.bounds)
  scene:close()                                     -- the LÖVE meshes are ours now
end

function love.load(args) open(args[1] or "part.step") end
function love.filedropped(file) open(file:getFilename()) end
function love.update(dt) angle = angle + dt * 0.4 end

function love.draw()
  love.graphics.clear(0.11, 0.105, 0.10)
  CL.begin3d(view, angle)
  for _, part in ipairs(parts) do CL.draw(part.mesh, part.place, part.colour) end
  CL.end3d()
end

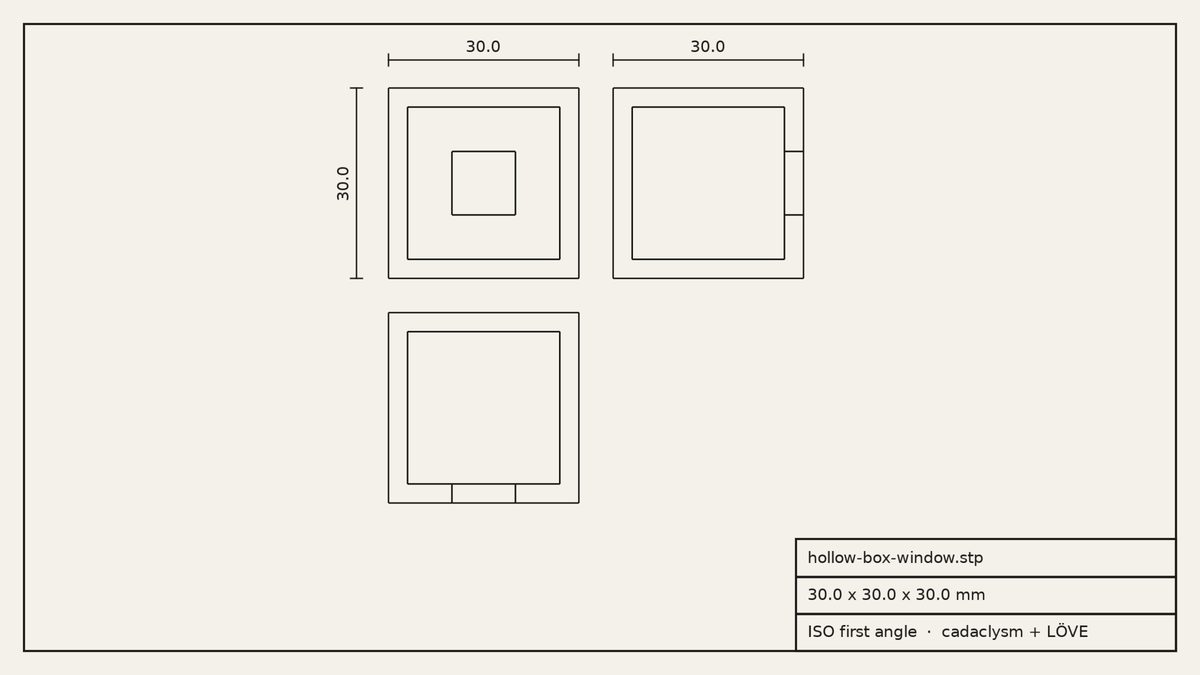

A drawing sheet

LÖVE is at home in 2D. Every edge of the model, seen from the front, from above and from the left — hidden ones included — laid out in ISO first angle, with the overall sizes in millimetres and a title block. The edges of a whole assembly become one mesh that a small shader widens to a constant line width, so a sheet of a million segments still draws in one call.

-- A drawing sheet from a CAD file, in LÖVE: three views (ISO first angle), the
-- overall sizes in millimetres and a title block. `love love-drawing part.step`,
-- or drop a file on the window.
-- The wrapper sits two folders up here; in your own game, keep its files beside
-- main.lua and leave this line out.
package.path = love.filesystem.getSource() .. "/../../?.lua;" .. package.path
local cadaclysm = require("cadaclysm")
local CL = require("cadaclysm_love")

local INK, PAPER = { 0.11, 0.105, 0.10 }, { 0.955, 0.945, 0.915 }
local sheet

local function open(path)
  local scene = cadaclysm.open(path, nil, "y-up")   -- metres, Y up
  sheet = {
    name = path:gsub("\\", "/"):match("[^/]*$"),
    size = scene.bounds.size,                       -- {x, y, z} in metres
    front = CL.drawing(scene, "front"),             -- every edge, seen from the front
    top = CL.drawing(scene, "top"),
    left = CL.drawing(scene, "left"),
  }
  scene:close()
end

function love.load(args)
  love.graphics.setFont(love.graphics.newFont(15))
  open(args[1] or "part.step")
end
function love.filedropped(file) open(file:getFilename()) end

local function width(d) return d.hi[1] - d.lo[1] end
local function height(d) return d.hi[2] - d.lo[2] end

-- A dimension: a line with end ticks from (x1, y1) to (x2, y2), its text beside it.
local function dimension(x1, y1, x2, y2, metres)
  local vertical = x1 == x2
  local tx, ty = vertical and 6 or 0, vertical and 0 or 6
  love.graphics.line(x1, y1, x2, y2)
  love.graphics.line(x1 - tx, y1 - ty, x1 + tx, y1 + ty)
  love.graphics.line(x2 - tx, y2 - ty, x2 + tx, y2 + ty)
  local label = ("%.1f"):format(metres * 1000)
  local font = love.graphics.getFont()
  local w, h = font:getWidth(label), font:getHeight()
  if vertical then
    love.graphics.print(label, x1 - h - 4, (y1 + y2 + w) / 2, -math.pi / 2)   -- read from the right
  else
    love.graphics.print(label, (x1 + x2 - w) / 2, y1 - h - 4)
  end
end

function love.draw()
  local W, H = love.graphics.getDimensions()
  love.graphics.clear(PAPER)
  love.graphics.setColor(INK)
  love.graphics.setLineWidth(2)
  love.graphics.rectangle("line", 24, 24, W - 48, H - 48)          -- the border
  local f, t, l = sheet.front, sheet.top, sheet.left
  if not f.mesh then return end

  -- One scale for all three views, the front view top left, the view from the left
  -- to its right and the view from above below it: ISO first angle.
  local gap = 0.18 * math.max(width(f), height(f))
  local s = math.min((W - 200) / (width(f) + gap + width(l)), (H - 260) / (height(f) + gap + height(t)))
  local x0 = 96 + (W - 200 - s * (width(f) + gap + width(l))) / 2
  local y0 = 88
  local fx, fy = x0 - f.lo[1] * s, y0 - f.lo[2] * s
  CL.draw_lines(f, fx, fy, s, 1.6)
  CL.draw_lines(l, x0 + (width(f) + gap) * s - l.lo[1] * s, fy, s, 1.6)
  CL.draw_lines(t, fx, y0 + (height(f) + gap) * s - t.lo[2] * s, s, 1.6)

  love.graphics.setLineWidth(1)
  dimension(x0, y0 - 28, x0 + width(f) * s, y0 - 28, sheet.size[1])                    -- width
  dimension(x0 - 32, y0, x0 - 32, y0 + height(f) * s, sheet.size[2])                    -- height
  local lx = x0 + (width(f) + gap) * s
  dimension(lx, y0 - 28, lx + width(l) * s, y0 - 28, sheet.size[3])                     -- depth

  -- The title block.
  local bw, bh = 380, 112
  local bx, by = W - 24 - bw, H - 24 - bh
  love.graphics.setLineWidth(2)
  love.graphics.rectangle("line", bx, by, bw, bh)
  love.graphics.line(bx, by + 38, bx + bw, by + 38)
  love.graphics.line(bx, by + 75, bx + bw, by + 75)
  love.graphics.print(sheet.name, bx + 12, by + 10)
  love.graphics.print(("%.1f x %.1f x %.1f mm"):format(sheet.size[1] * 1000, sheet.size[2] * 1000,
    sheet.size[3] * 1000), bx + 12, by + 47)
  love.graphics.print("ISO first angle  ·  cadaclysm + LÖVE", bx + 12, by + 84)
end

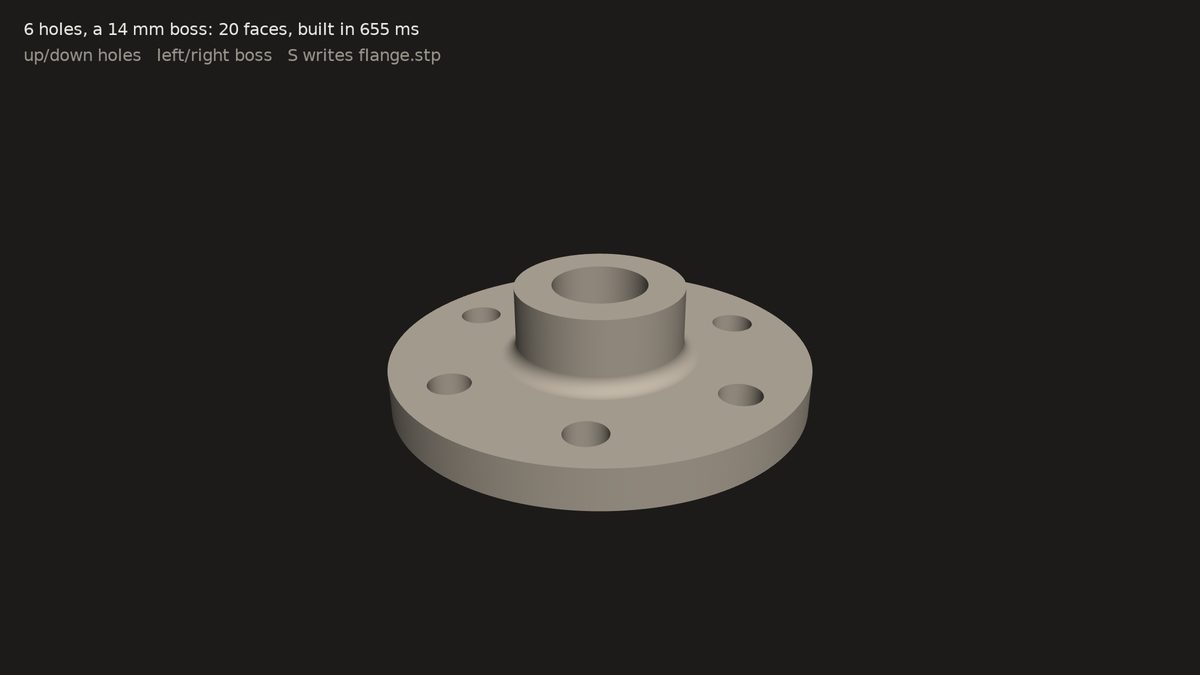

Build it in Lua

The blacksmith kernel in a game loop: a flange with a ring of bolt holes, a boss, a bore and a fillet where the boss meets the disc, rebuilt as an exact B-rep each time a key changes a parameter — and written to STEP when you ask.

-- A parametric flange, built by the blacksmith kernel while you watch, in LÖVE:
-- `love love-forge`. Up and down change the bolt holes, left and right the boss;
-- S writes the exact solid to flange.stp.
-- The wrapper sits two folders up here; in your own game, keep its files beside
-- main.lua and leave this line out.
package.path = love.filesystem.getSource() .. "/../../?.lua;" .. package.path
local bs = require("cadaclysm_blacksmith")
local CL = require("cadaclysm_love")
local Profile, Solid, Frame = bs.Profile, bs.Solid, bs.Frame

local holes, boss = 6, 14                 -- the two parameters, in millimetres
local part, mesh, view, took, angle

local function flange()
  -- A disc with a ring of bolt holes: one outline, extruded once.
  local outline = Profile.circle(40)
  for i = 0, holes - 1 do
    local a = 2 * math.pi * i / holes
    outline = outline:with_hole(Profile.circle(4):translate(30 * math.cos(a), 30 * math.sin(a)))
  end
  local disc = Solid.extrude(outline, Frame.xy(), 8)
  -- A boss on top, and a bore through both.
  local body = disc:join(Solid.cylinder(16, boss):translate(0, 0, 8))
    :cut(Solid.cylinder(9, boss + 40):translate(0, 0, -20))
  -- Round the circle where the boss meets the disc: the one curved edge at z = 8, r = 16.
  local joint = {}
  for _, edge in ipairs(body.edges) do
    local p = edge.segments[1][1]
    if not edge.is_line and math.abs(p[3] - 8) < 1e-6 and math.abs(math.sqrt(p[1] ^ 2 + p[2] ^ 2) - 16) < 1e-6 then
      joint[#joint + 1] = edge
    end
  end
  return body:fillet(joint, 3)
end

local function rebuild()
  local start = love.timer.getTime()
  if part then part:close() end
  part = flange()
  took = love.timer.getTime() - start
  local upright = part:rotate({ { 0, 0, 0 }, { 1, 0, 0 } }, -math.pi / 2)   -- Z up to Y up
  mesh = CL.solid(upright, 0.02)
  view = view or CL.frame(upright.bounds)
  upright:close()
end

function love.load()
  love.graphics.setFont(love.graphics.newFont(16))
  angle = 0.6
  rebuild()
end

function love.update(dt) angle = angle + dt * 0.4 end

function love.keypressed(key)
  if key == "up" then holes = math.min(holes + 1, 16)
  elseif key == "down" then holes = math.max(holes - 1, 3)
  elseif key == "right" then boss = math.min(boss + 2, 40)
  elseif key == "left" then boss = math.max(boss - 2, 4)
  elseif key == "s" then part:step("flange.stp") return
  else return end
  rebuild()
end

function love.draw()
  love.graphics.clear(0.11, 0.105, 0.10)
  CL.begin3d(view, angle)
  CL.draw(mesh, nil, { 0.74, 0.70, 0.64 })
  CL.end3d()
  love.graphics.setColor(0.94, 0.93, 0.91)
  love.graphics.print(("%d holes, a %d mm boss: %d faces, built in %.0f ms"):format(holes, boss, part.faces,
    took * 1000), 24, 20)
  love.graphics.setColor(0.6, 0.59, 0.56)
  love.graphics.print("up/down holes   left/right boss   S writes flange.stp", 24, 46)
end

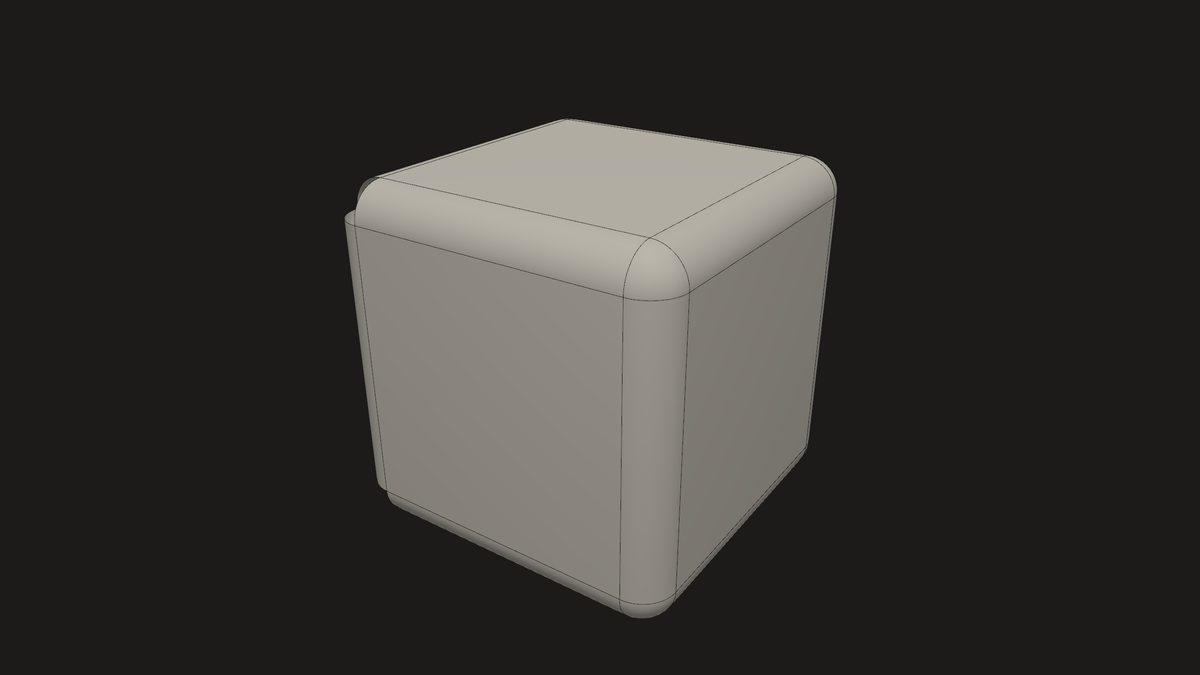

On the table, in a headset

LÖVR draws lines natively, so the edges go over as the library hands them out and are depth-tested with the faces. In a headset — or LÖVR's desktop simulator — the part stands on a table in front of you, forty centimetres across; with the headset module off, the window orbits it.

-- A CAD part with its edges, in LÖVR: `lovr lovr-part part.step`. In a headset (or
-- LÖVR's desktop simulator) it stands on a table in front of you; with the headset
-- module off in conf.lua, the window orbits it.
-- The wrapper sits two folders up here; in your own project, keep its files beside
-- main.lua and leave this line out.
package.path = lovr.filesystem.getSource() .. "/../../?.lua;" .. package.path
local cadaclysm = require("cadaclysm")
local CL = require("cadaclysm_lovr")

local parts, view, table_top, angle = {}, nil, nil, 0.6

function lovr.load(args)
  local scene = cadaclysm.open(args[1] or "part.step", nil, "y-up")   -- metres, Y up
  for _, placement in ipairs(scene.placements) do
    local body = placement.geometry
    parts[#parts + 1] = {
      mesh = CL.mesh(body.mesh),                         -- the faces
      edges = CL.edges(body.edges),                      -- the edges, as LÖVR lines
      place = lovr.math.newMat4(unpack(placement.raw_transform)),
      colour = body.colour or { 0.72, 0.70, 0.66 },
    }
  end
  view, table_top = CL.frame(scene.bounds), CL.table_top(scene.bounds)
  scene:close()
  lovr.graphics.setBackgroundColor(0.11, 0.105, 0.10)
end

function lovr.update(dt) angle = angle + dt * 0.4 end

function lovr.draw(pass)
  if lovr.headset then pass:transform(table_top) else CL.camera(pass, view, angle) end
  pass:setShader(CL.shader())
  pass:setDepthOffset(-2, -2)             -- faces a hair back, so the edges on them show
  for _, part in ipairs(parts) do
    pass:setColor(part.colour)
    pass:draw(part.mesh, part.place)
  end
  pass:setShader()
  pass:setDepthOffset(0, 0)
  pass:setColor(0.07, 0.07, 0.08)
  for _, part in ipairs(parts) do
    if part.edges then pass:draw(part.edges, part.place) end
  end
end

What to know

• Fields, not calls. What Python spells as a property is a field (node.name, scene.placements, solid.faces); what Python calls is a method (scene:query(filter), solid:fillet(edges, 2)). The LuaJIT reference lists every one.
• Borrowed memory. A mesh's arrays point into the document itself; nothing is copied until a helper copies it to the GPU. Views keep their document alive, and scene:close() or solid:close() frees it at once.
• Indices count from zero where the library counts them (nodes, faces, edges, mesh indices); the Lua arrays the wrapper builds count from one.
• Threads. A love.thread is its own Lua state and requires the module itself; meshing a large file there keeps the game loop running.
• Where it cannot run: love.js (it has no FFI) and 32-bit builds. A fused game cannot load a library from inside its archive: ship the libraries beside the executable.
• Licence. Everything works without one, and every open prints a notice to stderr; a game with no console can poll cadaclysm.license_notice_count() and show its own. See the licence file and pricing.
